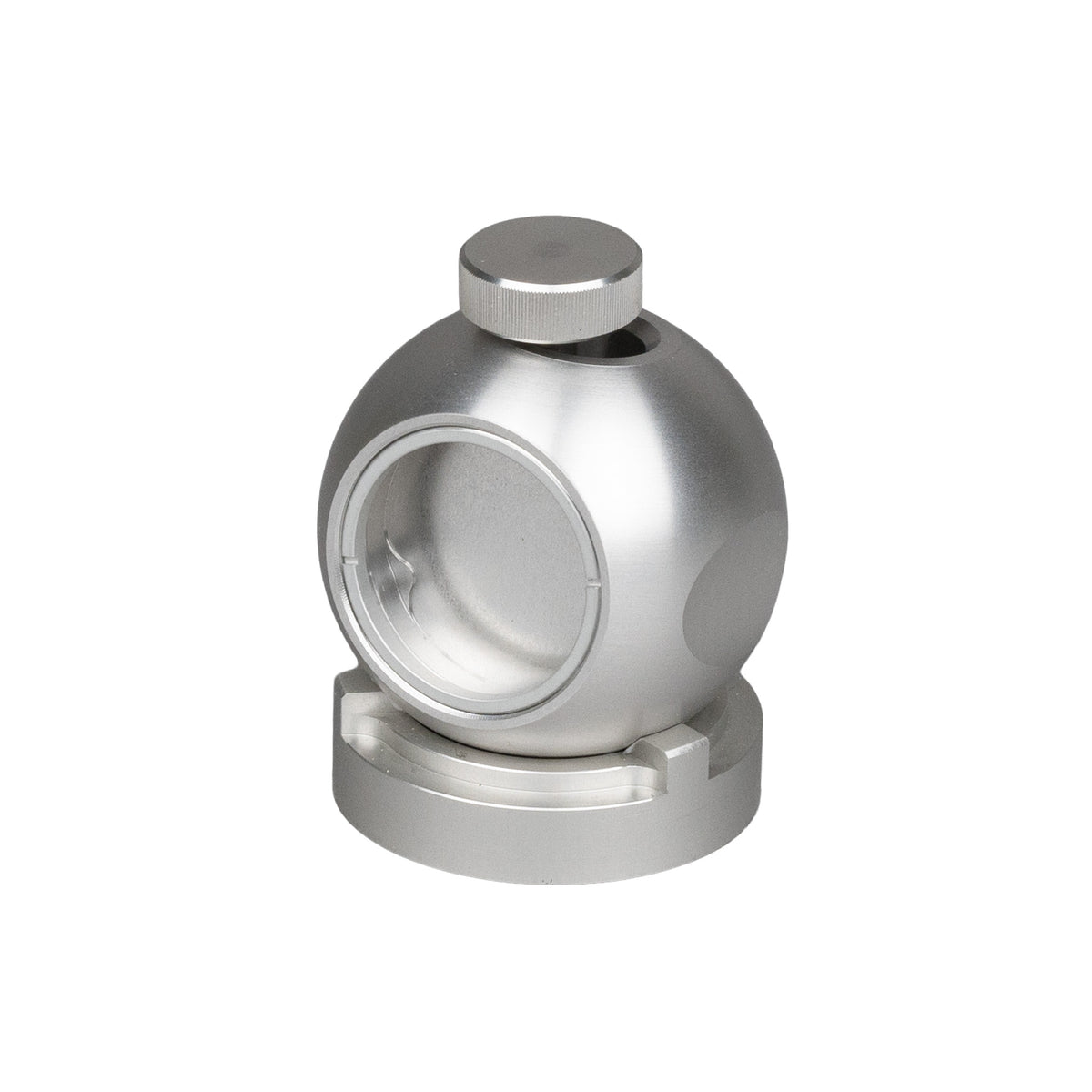

AB1 Series: Adjust-A-Ball for Ø1" Mirrors

AB1 Series: Adjust-A-Ball for Ø1" Mirrors

Regular price $195.00 USD
Regular price Sale price $195.00 USD
Sale Sold out
Anodize Option

Product Information Table

DESCRIPTION

Designed with the center of mass that allows its coefficient of thermal expansion (CTE) to have even distribution about center of mirror. Initial results have demonstrated temperature fluctuations do not influence optical alignment. The smooth, multiaxial movement of our Adjust-A-Ball® provides an intuitive alignment mechanism for beginner and experienced optical scientists alike.

INSTRUCTIONS / HOW TO USE

Place your mirror or other optical element onto the three pads located in the recessed pocket and secure it using a retaining ring or more permanently with your desired adhesive. Secure mount with the underside M4x0.7 threads (6.5mm deep). Once the optic is in place, adjust the optical alignment as necessary and tighten the Non-Influential® locking mechanism until tight.

PRODUCT FEATURES & BENEFITS

Laser points to, and stays, in stabile position:

  • Doesn't move with temperature change.
    1. Designed with the center of mass that allows its coefficient of thermal expansion (CTE) to have even distribution.
    2. Initial results have demonstrated that temperature fluctuations do not influence optical alignment.
  • Doesn't move when locked.
    1. Non-influential locking mechanism
  • Locks by hand (no tools needed)
  • Compact size Ø1.5 x 2.1 tall
  • Center of mirror height = 1” nominal
  • Post mountable for adjustable optical height
  • Ease of alignment with one smooth swing of the mount
  • ± 11 degrees pitch and roll & 360 degrees yaw
  • Underside M4x0.7 threaded mounting hole (6.5mm deep)
    1. Compatible with thread adapters for direct placement on breadboards with M6 or ¼-20 threads

    COMPETITIVE ANALYSIS

    Traditional mirror mounts often require time and effort. Our Adjust-A-ball mirror  mounts significantly reduces time spent adjusting the optic while promoting ergonomic adjusting. In contrast to traditional mirror mounts with adjustment screws and multiple tooling, Our Adjust-A-Ball mounts quickly adjust beam position by hand, eliminating additional tools and processing.

    Conventional mirror mounts have locking mechanisms that influence laser alignment.  Adjust-A-Ball mirror mounts do not move when locked, so laser alignment is not influenced nor compromised.

    Standard mirror mounts are unpredictable when exposed to heat, requiring readjustment for optical alignment.  Adjust-A-Ball mirror mounts are not influenced by temperature variations so the optical alignment stays in position eliminating any need for realignment.



    Click here for a spec sheet of the AB1.

    Custom colors can be requested! Please contact us!
