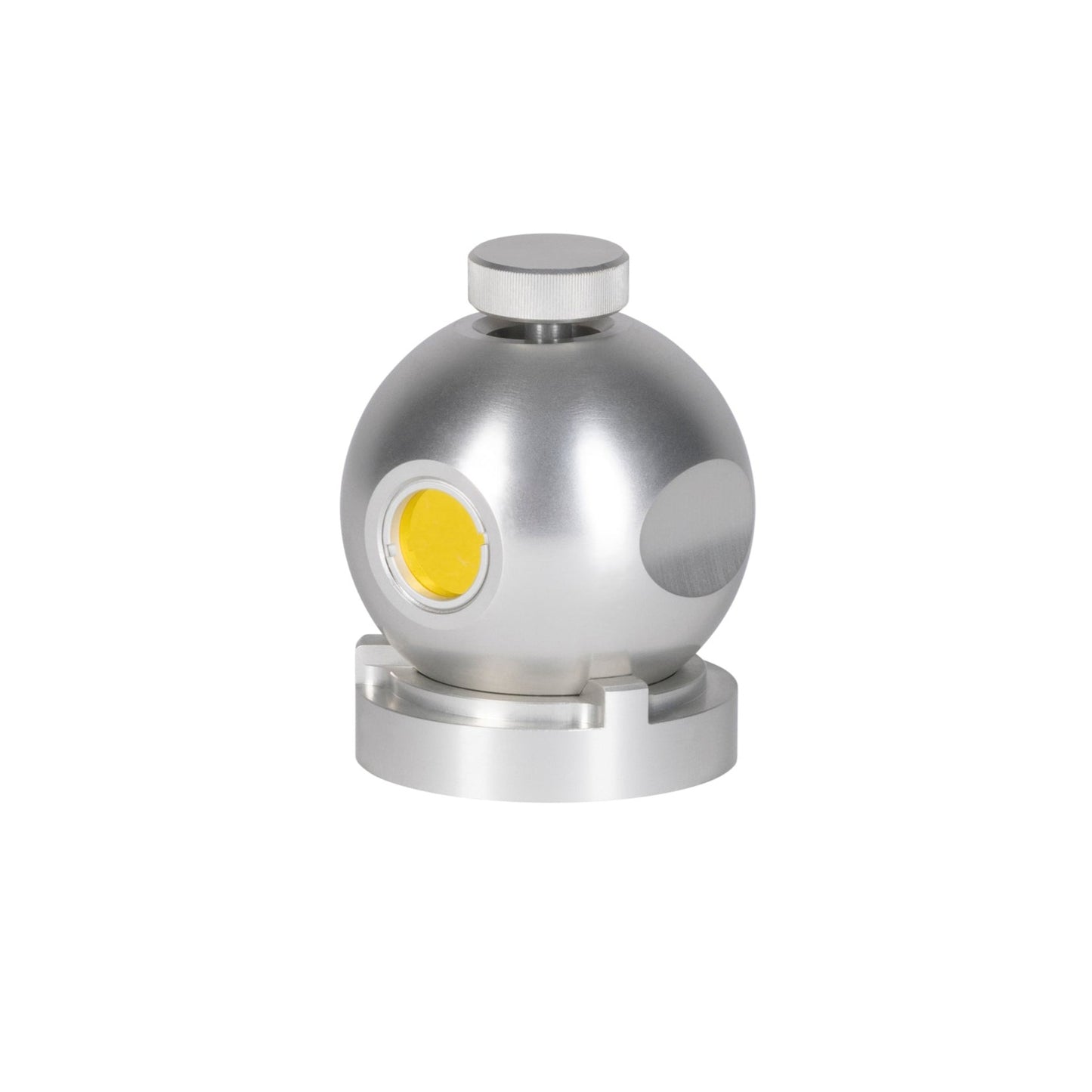

AB5 Series: Adjust-A-Ball for Ø1/2" Mirrors

Product Information Table

DESCRIPTION

Designed with the center of mass that allows its coefficient of thermal expansion (CTE) to have even distribution. Initial results have demonstrated temperature fluctuations do not influence optical alignment. The smooth, multiaxial movement of the Adjust-A-Ball® provides an intuitive alignment mechanism for beginner and experienced optical scientists alike.

INSTRUCTIONS / HOW TO USE

Place your mirror or other optical element onto the three pads located in the recessed pocket and secure it using a retaining ring or more permanently with your desired adhesive. Secure mount with the underside M4x0.7 threads (6.5mm deep). Once the optic is in place, adjust the optical alignment as necessary and slowly tighten the influence free locking mechanism until tight.

PRODUCT FEATURES & BENEFITS

1. Compact size Ø1.5 x 2.1 tall
2. Designed with the center of mass that allows its coefficient of thermal expansion (CTE) to have even distribution. Initial results have demonstrated that temperature fluctuations do not influence optical alignment.
3. Non-influential locking mechanism
4. Locks by hand (no tools needed)
5. Center of mirror height = 1” nominal
6. Post mountable for adjustable optical height
7. Ease of alignment with one smooth swing of the mount
8. ± 11 degrees pitch and roll 360 degrees yaw
9. Underside M4x0.7 threaded mounting hole (6.5mm deep)
10. Compatible with thread adapters for direct placement on breadboards with M6 or ¼-20 threads

COMPETITIVE ANALYSIS

Traditional mirror mounts often require time and effort. The Adjust-A-ball Mirror-Mount significantly reduces time spent adjusting the optic while promoting ergonomic adjusting. In contrast to traditional mirror mounts with adjustment screws and multiple tooling, Adjust-A-Ball quickly adjusts beam position by hand, eliminating additional tools and processing.

Conventional mirror mounts have locking mechanisms that influence laser alignment.  Adjust-A-Ball mirror mounts do not move when locked, so laser alignment is not influenced nor compromised.

Standard mirror mounts are unpredictable when exposed to heat, requiring readjustment for optical alignment.  Adjust-A-Ball mirror mounts are not influenced by temperature variations so the optical alignment stays in position eliminating any need for realignment.
