FAP5 Series: POST Series Fine-Adjust 1/2" Mirror Mounts

FAP5 Series: POST Series Fine-Adjust 1/2" Mirror Mounts

Regular price $195.00 USD
Regular price Sale price $195.00 USD
Sale Sold out
Anodize Option



Product Information Table

DESCRIPTION

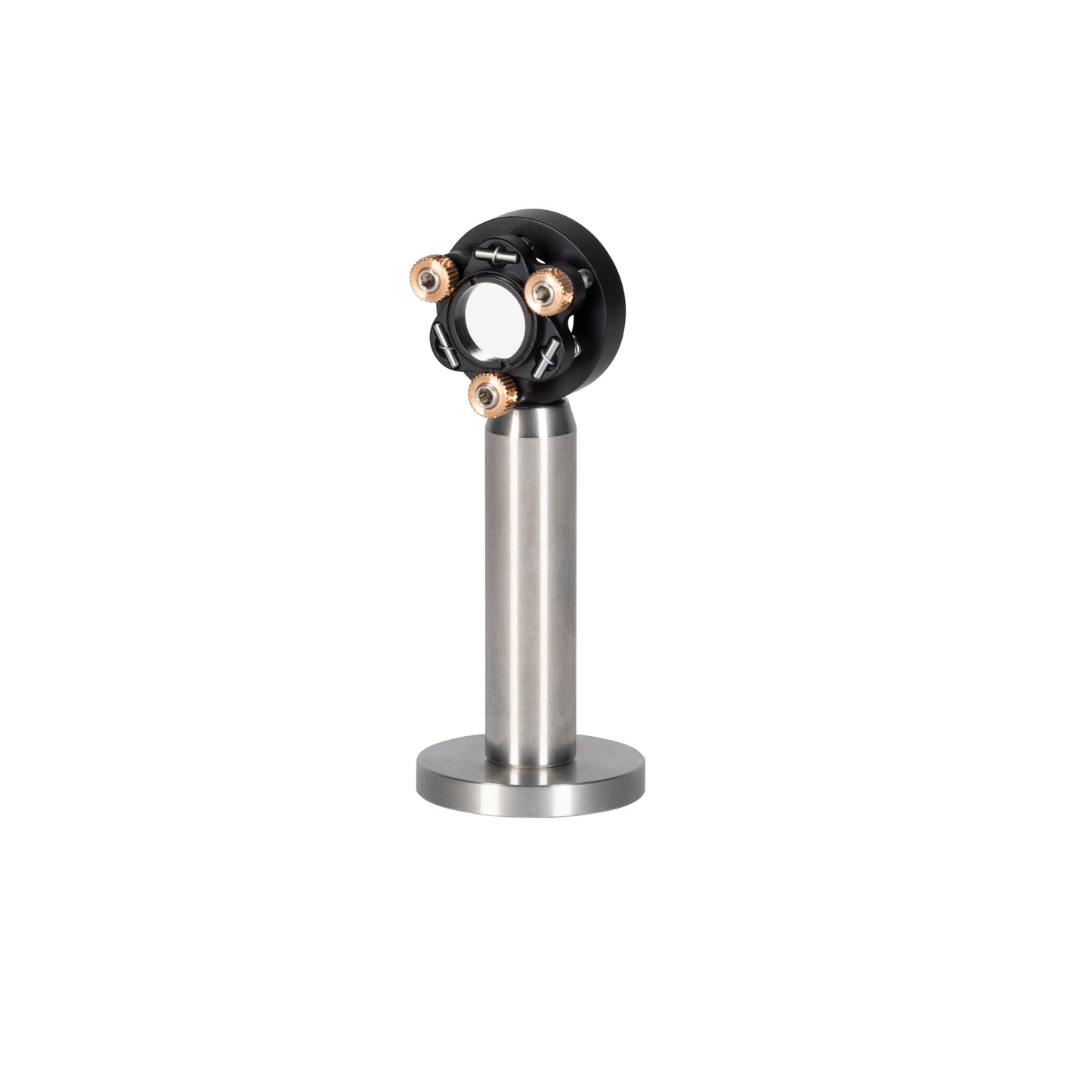

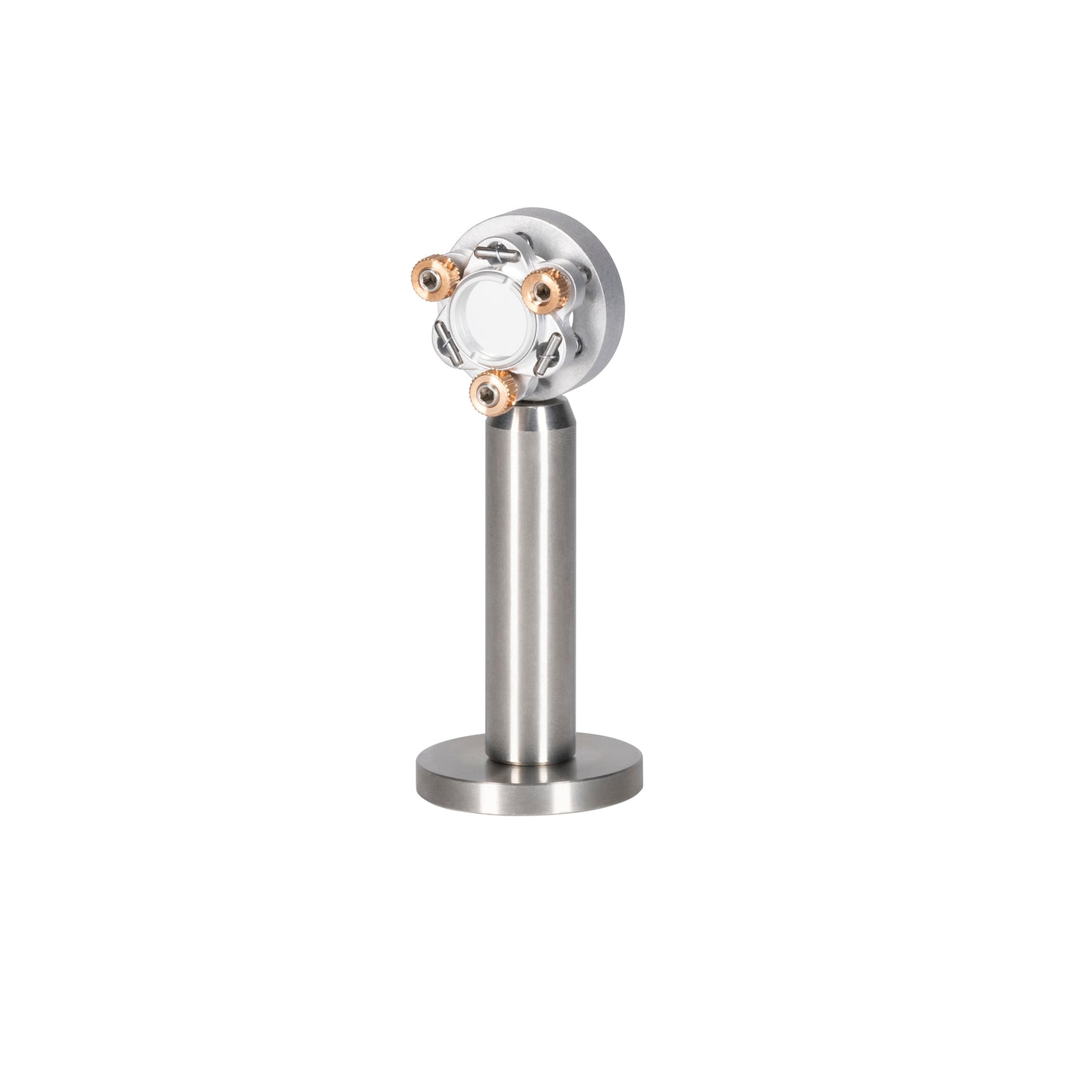

Post mountable high resolution optical alignment with our fine adjust mount. Accommodates Ø1/2” transmissive optic, or mirror, secured with retaining ring (included).  Use a 5/64" ball driver to quickly and easily adjust your alignment using three adjustment screws. Lock nuts included and can be ordered separately.

Lock nuts are not included but can be purchased here.

Post mount is not included.

INSTRUCTIONS / HOW TO USE

Install a Ø1/2” optic and secure it with a retaining ring.  By adjusting the three adjustment screws on the mount, optimize your x-y alignment in seconds with extreme precision.

M4 threaded hole (setscrew not included) allows post mount to desired height.

PRODUCT FEATURES & BENEFITS

  1. Mounts standard Ø1/2” and Ø12mm optics
  2. ±7° adjustability
  3. >0.88 µm sensitivity (Linear Travel Resolution Per One Turn)
  4. Modular design compatibility with Adjust-A-Ball adding ±7° of fine adjustment
  5. Post mountable (Post not included in price - sold separately)

COMPETITIVE ANALYSIS

Thermal equilibrated positioning keeps mirrors in stable position. FAP5 Series uses Maxwell kinematic coupling.  Traditional optic mounts use Kelvin kinematic coupling that normally move during thermal cycling.



Click here for a spec sheet of the FAP5.

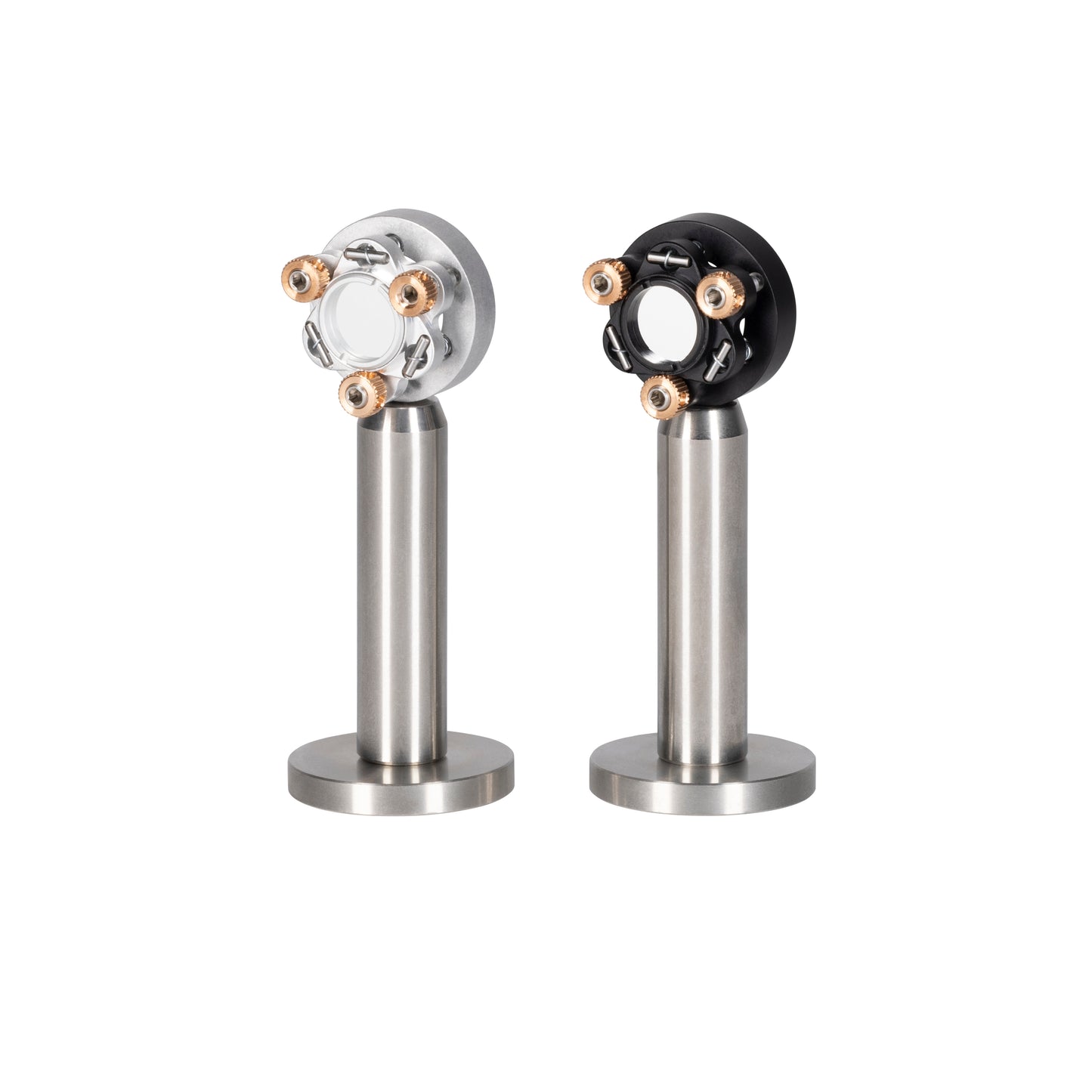

Custom color options on request. Please contact us!
